Description
1HZ TURBO ENGINE REBUILD KIT
This engine rebuild kit has been designed to suit the Toyota 1HZ engines that have an aftermarket turbo fitted

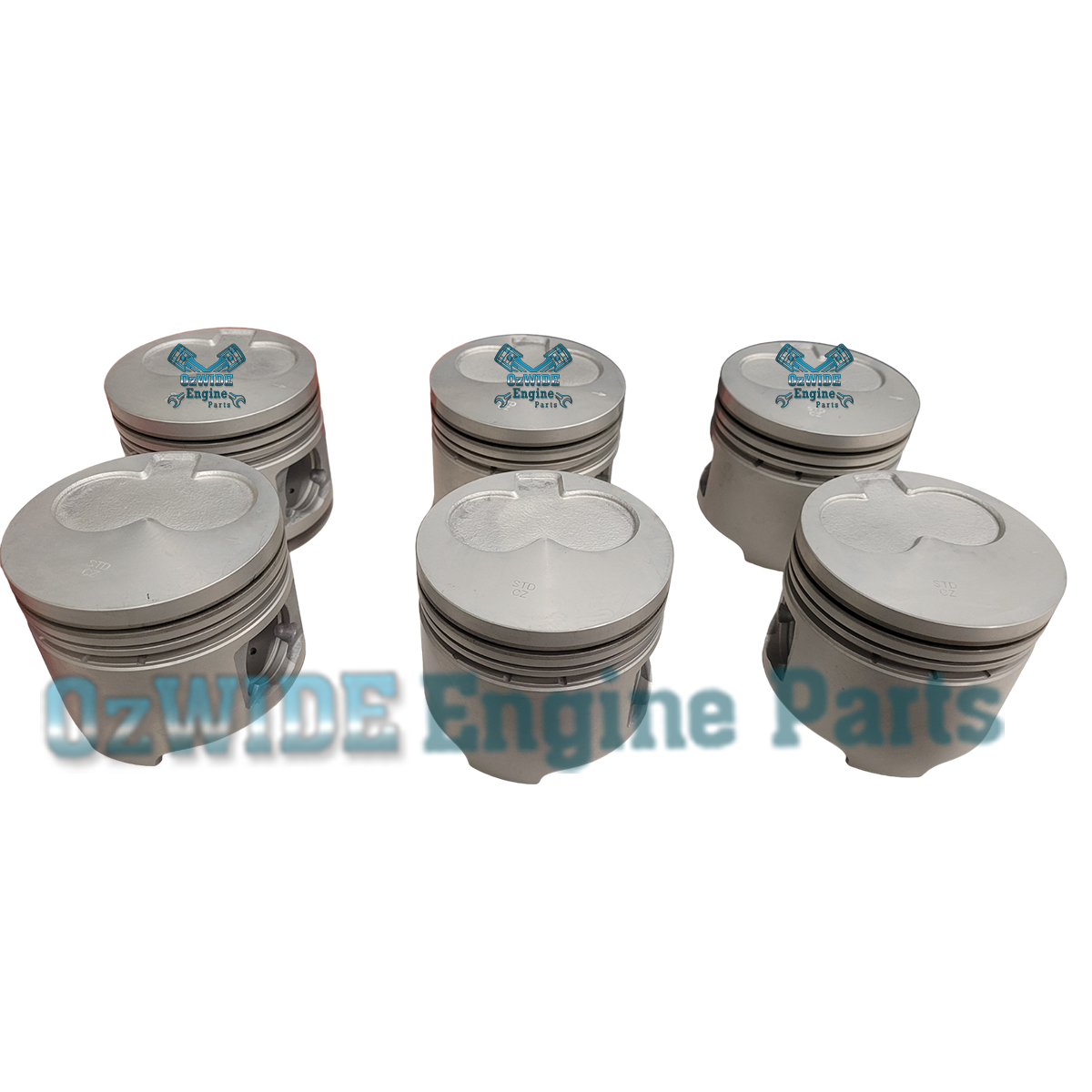

High end Arco or Hypatec brand pistons with a 33 mm gudgeon pin size which greatly increases the strength over a standard 29mm pin size.
These pistons are also fitted with the Alfin top ring groove inserts. We also supply this rebuild kit with Japanese Rings and either Australian or Japanese conrod and main bearings.

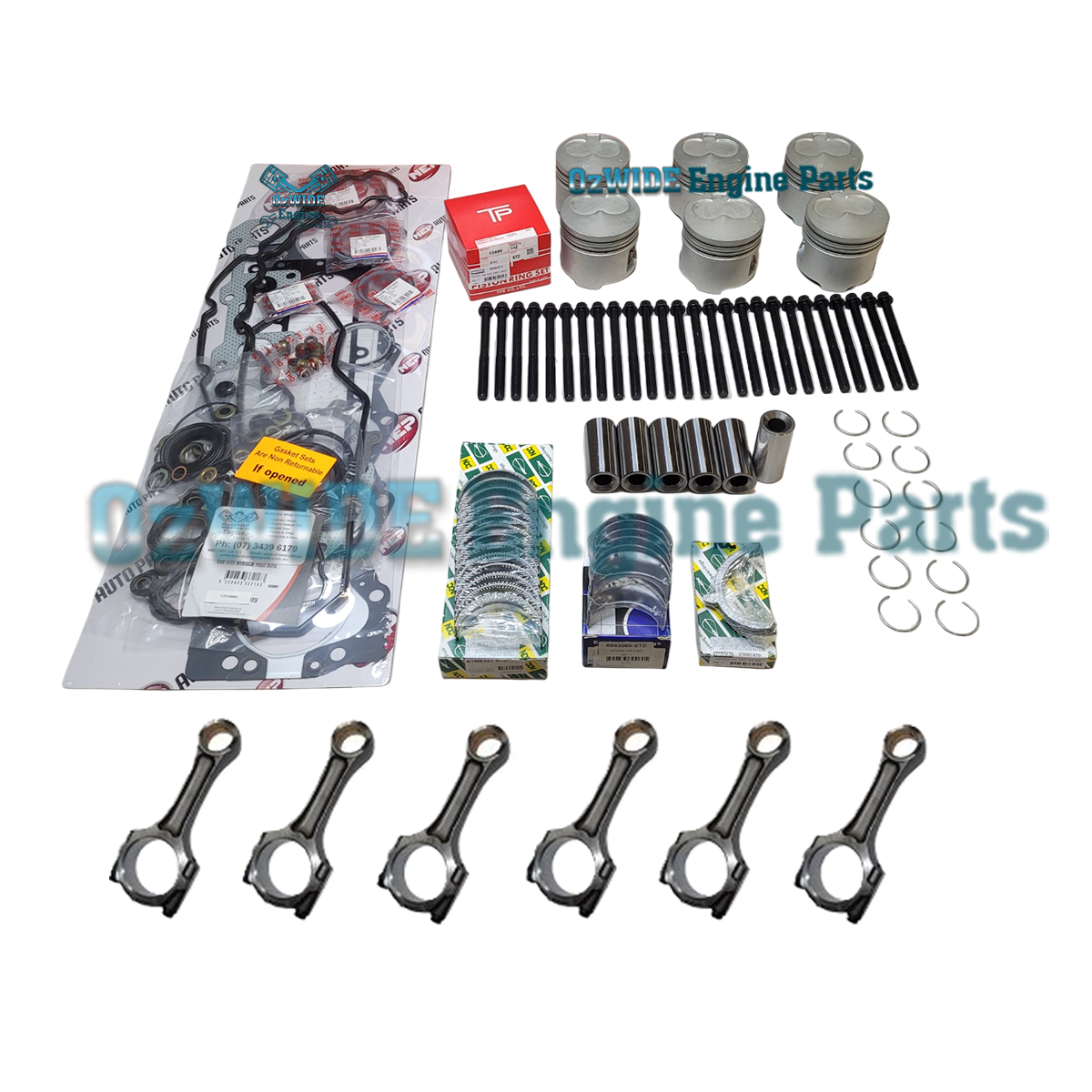

Included:
- Piston and ring set (with 33mm gudgeon pin size)

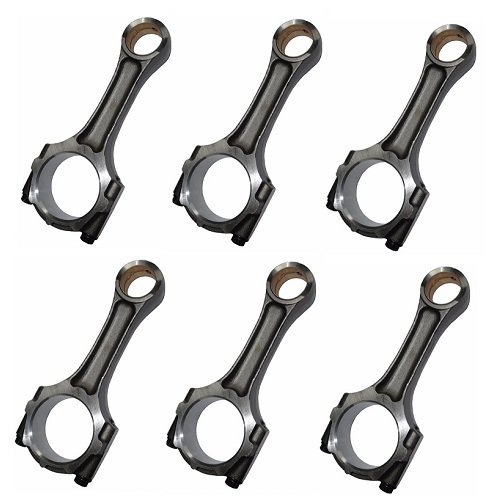

- 1HD-T 33mm conrods

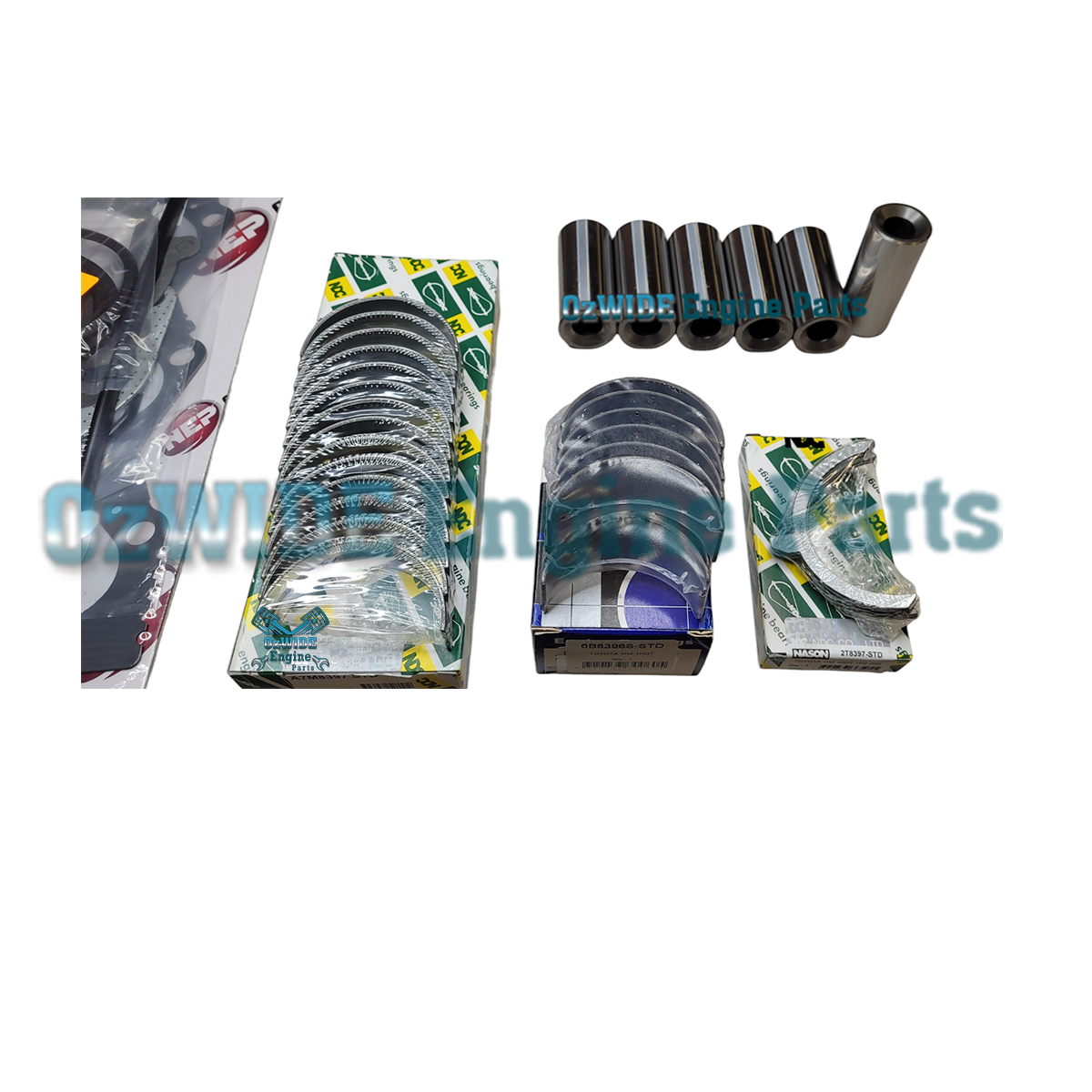

- Conrod bearings (Japanese/Australian)
- Main bearings (Japanese)
- Thrust washers (Japanese)
- Full gasket set
- Head gasket 1.45mm
- Head bolt set
Brands supplied will depend on our current stock levels at time of ordering.
Brands typically supplied with our rebuild kits and not limited to are:
Brands:
- Pistons – Arco/Nason or Hypatec
- Rings – TP, NPR, or RIK Rings
- Bearings – ACL, King, LLE, NDC or Taiho
- Gaskets – NEP, Ajusa, or Permaseal
- Head bolts – NEP or Ajusa
Part number: 1HZ-ERK-TURBO
At checkout: Let us know your Month/Year
For more information, call us on 07 3439 6179
*Picture/s are for illustration purposes only
